Why to Choose Topscom as Your China PCB Assembly Manufacturer?

Editor:超级管理员Time:2025-01-13 10:22:44Views:30

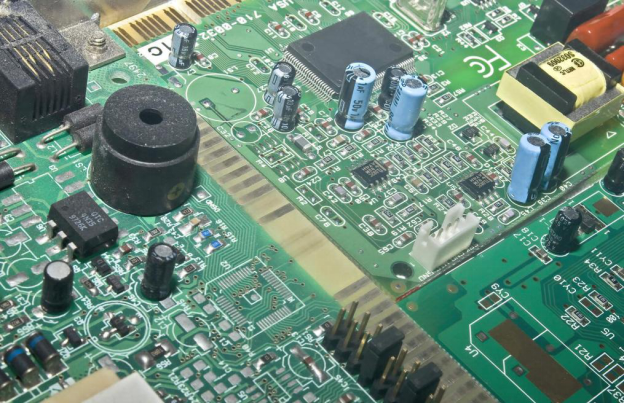

PCB Assembly

An Overview of PCB Assembly

Printed Circuit Board assembly is a critical process in the manufacturing of electronic devices. It involves the precise placement and soldering of electronic components onto a PCB, transforming it into a functional circuit. This article delves into the intricacies of PCB assembly, highlighting its importance, process, and advancements. This article delves into the intricacies of PCB assembly, highlighting its importance, process, and advancements. And introduce the leading China PCB assembly manufacturer - Topscom.



Importance of PCB Assembly

PCB assembly is fundamental to the functionality of almost all modern electronic devices. From smartphones and computers to medical equipment and automotive systems, the reliability and performance of these devices heavily depend on the quality of PCB assembly. A well-assembled PCB ensures that electrical connections are secure, reducing the risk of malfunctions and increasing the device's lifespan.



The PCB Assembly Process

The PCB assembly process can be broadly categorized into several key steps:

1. Solder Paste Application: The first step involves applying solder paste to the PCB. This paste is a mixture of tiny solder particles and flux, which helps in cleaning the surfaces and promoting better soldering. The paste is applied to the areas where components will be placed using a stencil or a screen printer.

2. Component Placement: Once the solder paste is applied, the next step is to place the electronic components onto the PCB. This is typically done using automated pick-and-place machines, which use precision robotics to position components accurately. These machines can place thousands of components per hour, ensuring high efficiency and accuracy.

3. Reflow Soldering: After placing the components, the PCB is passed through a reflow oven. The heat from the oven melts the solder paste, creating a strong mechanical and electrical bond between the components and the PCB. The temperature profile in the oven is carefully controlled to ensure proper soldering without damaging the components.

4. Inspection and Testing: The final step involves inspecting the assembled PCB for defects and testing its functionality. Automated optical inspection (AOI) machines are often used to detect any missing components, solder bridges, or other issues. Functional testing may also be performed to ensure that the PCB operates correctly.


Advancements in PCB Assembly

The field of PCB assembly has seen significant advancements in recent years, driven by the increasing complexity and miniaturization of electronic devices. Some notable developments include:

- Miniaturization: As electronic devices become smaller and more powerful, the demand for miniaturized components and denser PCB designs has increased. Advanced assembly techniques and equipment have made it possible to place components with higher precision and density.

- Automated Assembly: Automation has revolutionized the PCB assembly process, significantly improving efficiency and accuracy. Automated machines can handle a wide range of components, from tiny surface-mount devices (SMDs) to larger through-hole components.

- Advanced Materials: The development of new materials, such as lead-free solder and high-performance substrates, has improved the reliability and environmental friendliness of PCB assemblies.

- Smart Manufacturing: The integration of smart manufacturing technologies, such as Internet of Things (IoT) sensors and artificial intelligence (AI), has enabled real-time monitoring and optimization of the assembly process. This leads to higher quality and reduced production costs.


PCB assembly is a complex and vital process in the manufacturing of electronic devices. Its importance cannot be overstated, as the quality of PCB assembly directly impacts the performance and reliability of the final product. With ongoing advancements in technology and materials, the future of PCB assembly looks promising, paving the way for even more innovative and sophisticated electronic devices.


China PCB Assembly Manufacturer

Leading PCB Assembly Manufacturer in China: Topscom

When it comes to high-quality PCB assembly, Topscom stands out as a leading manufacturer in China. With over 10 years of experience in the electronics contract manufacturing (EMS) industry, Topscom has built a reputation for delivering reliable and innovative solutions.


Why Choose Topscom as the Only China PCB Assembly Supplier?

1. Extensive Experience: Established with a decade-long track record, Topscom has honed its expertise in PCB design, assembly, and testing. Their extensive experience ensures that they can handle projects of varying complexities with precision and efficiency.

2. Advanced Technology: Topscom invests in cutting-edge technology to stay at the forefront of the PCB assembly industry. They utilize advanced machinery and software for solder paste application, component placement, reflow soldering, and inspection, ensuring superior quality and consistency.

3. Comprehensive Services: Topscom offers a wide range of services beyond just PCB assembly. They provide PCB design, layout, and testing services, making them a one-stop solution for all your electronic manufacturing needs.

4. Quality Assurance: Quality is a top priority at Topscom. They implement rigorous quality control measures at every stage of the assembly process to ensure that each PCB meets the highest standards. Their commitment to quality is backed by ISO certifications and a robust quality management system.

5. Customer-Centric Approach: Topscom places great emphasis on customer satisfaction. They work closely with clients to understand their specific requirements and provide customized solutions that meet their unique needs. Their dedicated customer support team is always available to assist with any inquiries or concerns.



Topscom Contact Information

If you are looking for a reliable and experienced PCB assembly manufacturer in China, look no further than Topscom. You can reach out to them at:

- Address: Topscom Building, No.15 Building, SongZiLing Industrial Park, Liantang Industrial City, Shang Village, Gongming, Guangming New District, Shenzhen City, China, 510220

- Website: https://www.topscompcbassembly.com/

By choosing Topscom, you can be confident that your PCB assembly project will be handled with the utmost care and expertise, ensuring the best possible outcome for your electronic devices.
